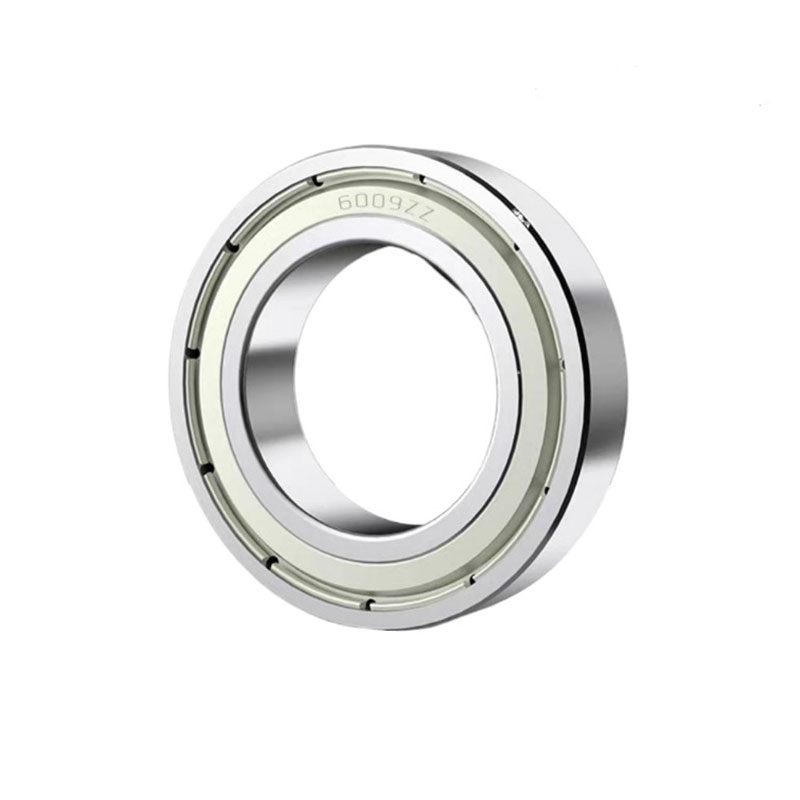

Overview of 6000 Series Bearings

JLZC produces high-quality 6000 Series Bearings. We engineer these 6000 Series Bearings for diverse industrial applications. They consist of an inner ring, an outer ring, a steel ball, and a cage. Furthermore, these JLZC bearings primarily bear radial loads. They also support a certain amount of axial load. In addition, because their friction torque is smaller than other types, these 6000 Series Bearings are ideal for high-speed operating conditions. Please check our Deep Groove Ball Bearings category for more options or visit ISO standards for technical references.

Technical Specifications of 6000 Series Bearings

Our manufacturing processes for 6000 Series Bearings strictly comply with GB/T 307.1 and ISO 492 standards.

• Radial Clearance: Standard JLZC units feature internal clearances of 2, standard (N), 3, 4, and 5 classes.

• Temperature Limits: The operating temperature for standard 6000 Series Bearings must not exceed 120℃.

• Customization: For temperatures exceeding 120℃, we offer special heat-treated JLZC bearings, such as S0 (up to 150℃) and S1 (up to 200℃).

• Tilting Capacity: Depending on the radial clearance, 6000 Series Bearings allow a relative tilting angle error between the inner and outer rings ranging from 8′ to 16′.

Design Features and Suffixes

JLZC optimizes the cage design based on the outer diameter.

• Standard Size: For outer diameters less than 400 mm, we typically use a stamped steel cage.

• Large Size: For outer diameters greater than 400 mm, we often utilize a solid brass cage.

• Versatile Suffixes: Our 6000 Series Bearings codes include specific suffixes to meet your application requirements. We provide options like Z/2Z (shields), RS/2RS (contact seals), and RZ/2RZ (non-contact seals). Available precision suffixes include P5/P6 for accuracy classes, N/NR for snap grooves and rings, and DB/DF/DT for pairing methods.

Inquiry	Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
		d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
	6040 bearing	200	310	51	2.1	218	243	2000	2400	11.9
	6038 bearing	190	290	46	2.1	197	215	2100	2500	9.18
	6036 bearing	180	280	46	2.1	189	199	2300	2700	8.8
	6034 bearing	170	260	42	2.1	168	172	2400	2800	6.76
	6032 bearing	160	240	38	2.1	143	144	2600	3000	5.05
	6030 bearing	150	225	35	2.1	126	126	2800	3200	4.08
	6028 bearing	140	210	33	2	110	109	3000	3500	3.35
	6026 bearing	130	200	33	2	106	101	3200	3800	3.16
	6024 bearing	120	180	28	2	85	79.5	3500	4100	2.07
	6022 bearing	110	170	28	2	82	73	3800	4500	1.96
	6021 bearing	105	160	26	2	72.5	65.5	4000	4700	1.59
	6020 bearing	100	150	24	1.5	60	54	4200	5000	1.15
	6019 bearing	95	145	24	1.5	60.5	54	4500	5300	1.08
	6018 bearing	90	140	24	1.5	58	49.5	4700	5600	1.02
	6017 bearing	85	130	22	1.1	49.5	43	5000	5900	0.89
	6016 bearing	80	125	22	1.1	47.5	40	5300	6200	0.854
	6015 bearing	75	115	20	1.1	39.5	33.5	5700	6700	0.649
	6014 bearing	70	110	20	1.1	38	31	6100	7100	0.604
	6013 bearing	65	100	18	1.1	30.5	25.2	6500	7700	0.421
	6012 bearing	60	95	18	1.1	29.5	23.2	7300	8300	0.414
	6011 bearing	55	90	18	1.1	28.3	21.2	7700	9000	0.388
	6010 bearing	50	80	16	1	21.8	16.6	8400	9000	0.261
	6009 bearing	45	75	16	1	21	15.1	9200	1100	0.237
	6008 bearing	40	68	15	1	16.8	11.5	1000	1200	0.19
	6007 bearing	35	62	14	1	16	10.3	1200	1400	0.155
	6006 bearing	30	55	13	1	13.2	8.3	1300	1500	0.116
	6005 bearing	25	47	12	0.6	10.1	5.85	1500	1800	0.08
	6004 bearing	20	42	12	0.6	9.4	5.05	1800	2100	0.069
	6003 bearing	17	35	10	0.3	6.8	3.35	2000	2400	0.039
	6002 bearing	15	32	9	0.3	5.6	2.83	2200	2600	0.03
	6001 bearing	12	28	8	0.3	5.1	2.39	2600	3000	0.021
	6000 bearing	10	26	8	0.3	4.55	1.96	2900	3400	0.019
	60/22 bearing	22	44	12	0.6	955	515	1700	2000	0.074
	60/28 bearing	28	52	12	0.6	1270	755	1400	1600	0.098
	60/32 bearing	32	58	13	1	1200	820	1200	1500	0.129
