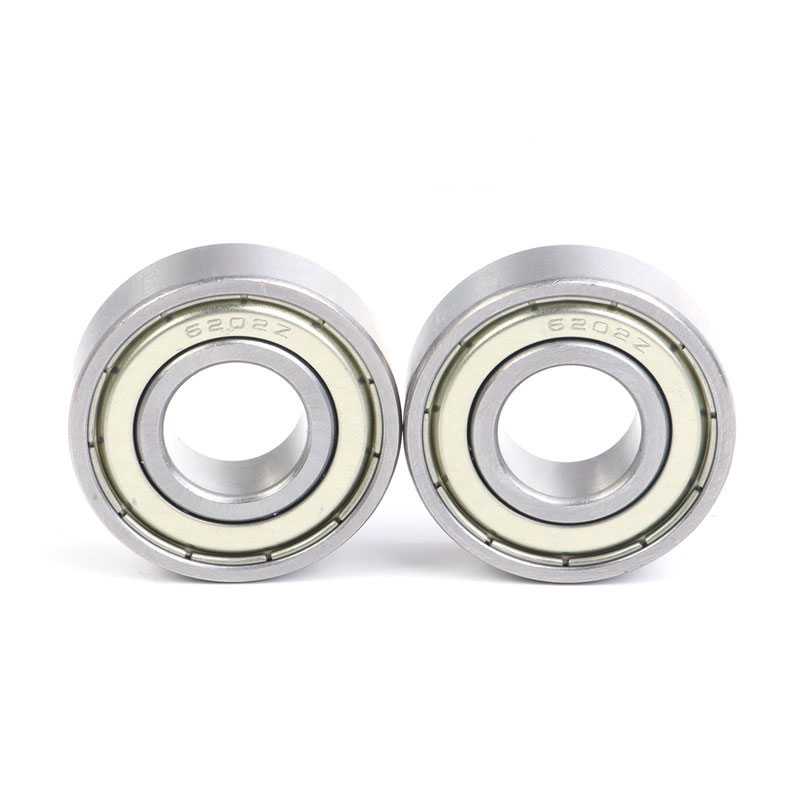

Precision Engineering of 6200 Series Bearings

JLZC produces the high-quality 6200 Series Bearings. We engineer these components for diverse industrial applications. Furthermore, our team manufactures them using premium GCr15 steel to ensure structural integrity. Therefore, this material selection provides exceptional load-carrying capacity and wear resistance. Additionally, our products adhere to strict ISO quality standards. Consequently, they provide reliable operation in demanding environments. If you require alternative configurations, please explore our full range of Spherical Roller Bearings

or our Pillow Block Bearings.

Technical Features of 6200 Series Bearings

The 6200 series features a robust, non-separable design. Thus, it handles both radial and axial loads easily. In addition, our engineers optimize the internal raceway geometry during the production process. Consequently, the bearing delivers minimal friction and superior rotational accuracy. Finally, we integrate advanced sealing technology into every unit. This protects the internal components against contaminants and moisture effectively. By choosing these precision components, you significantly reduce the maintenance frequency of your machinery.

Applications of 6200 Series Bearings

JLZC 6200 Series Bearings support various industrial sectors due to their versatile performance. For instance, manufacturers choose these components for high-speed electric motors. Moreover, they ensure stable operation in industrial power tools. Also, automotive engineers rely on these bearings for critical rotating parts. Finally, they provide long-term service life for various household appliances. We maintain rigorous quality control procedures, including vibration and noise analysis, to ensure every batch meets top industry benchmarks.

Inquiry	Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
		d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
	6200 bearing	10	30	9	0.6	5.1	2.39	25000	30000	0.032
	6201 bearing	12	32	10	0.6	6.1	2.75	22000	26000	0.037
	6202 bearing	15	35	11	0.6	7.75	3.6	19000	23000	0.045
	6203 bearing	17	40	12	0.6	9.6	4.6	18000	21000	0.066
	6204 bearing	20	47	14	1	12.8	6.65	16000	18000	0.106
	6205 bearing	25	52	15	1	14	7.85	13000	15000	0.128
	6206 bearing	30	62	16	1	19.5	11.3	11000	13000	0.199
	6207 bearing	35	72	17	1.1	25.7	15.3	9800	11000	0.288
	6208 bearing	40	80	18	1.1	29.1	17.8	8700	10000	0.366
	6209 bearing	45	85	19	1.1	32.5	20.4	7800	9200	0.398
	6210 bearing	50	90	20	1.1	35	23.2	7100	8300	0.454
	6211 bearing	55	100	21	1.5	43.5	29.2	6400	7600	0.601
	6212 bearing	60	110	22	1.5	52.5	36	6000	7000	0.783
	6213 bearing	65	120	23	1.5	57.5	40	5500	6500	0.99
	6214 bearing	70	125	24	1.5	62	44	5100	6000	1.07
	6215 bearing	75	130	25	1.5	66	49.5	4800	5600	1.18
	6216 bearing	80	140	26	2	72.5	53	4500	5300	1.4
	6217 bearing	85	150	28	2	83.5	64	4200	5000	1.79
	6218 bearing	90	160	30	2	96	71.5	4000	4700	2.15
	6219 bearing	95	170	32	2.1	109	82	3700	4400	2.62
	6220 bearing	100	180	34	2.1	122	93	3500	4200	3.14
	6221 bearing	105	190	36	2.1	133	105	3400	4000	3.7
	6222 bearing	110	200	38	2.1	144	117	3200	3800	4.36
	6224 bearing	120	215	40	2.1	155	131	2900	3400	5.15
	6228 bearing	140	250	42	3	166	150	2500	2900	7.57
	6232 bearing	160	290	48	3	185	186	2100	2500	11.7
	6234 bearing	170	310	52	4	212	223	20000	2400	14.5
	6236 bearing	180	320	52	4	227	241	19000	22000	15.1
	6238 bearing	190	340	55	4	255	281	18000	21000	18.2
	6244 bearing	220	400	65	4	297	365	15000	18000	30.2
	62/22 bearing	22	50	14	1	1320	690	14000	17000	0.117
	62/28 bearing	28	58	16	1	1830	995	12000	14000	0.171
	62/32 bearing	32	65	17	1	2110	1190	11000	12000	0.226
